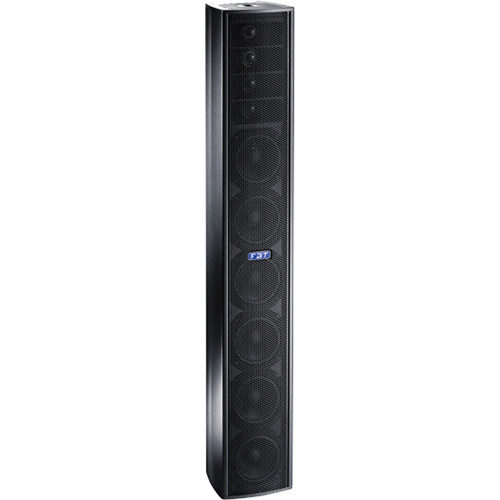

Vertus CLA 604

Vertus CLA 604



Passive Column Line Array – 500W 8ohm 123dB SPL

  • 2-way passive column line array
  • 6 x 100mm (4”) custom woofer with 25mm (1”) voice coil
  • 4 x 25mm (1”) dome neodymium tweeter on a waveguide
  • Frequency response from 130Hz to 20kHz
  • 100V transformer with 2 levels of power, 100 and 200W
  • 100°H x 20°V dispersion
  • 4-pole Euroblock input connector: 8ohm – 100W/100V – 200W/100V
  • Extruded-aluminum powder-coated cabinets
  • Wall-mount installation bars are supplied
  • Expandable line array by adding CLA604 modules in order to increase SPL and reduce the vertical radiation lobe width
  • Ideal for fixed installation in reverberant environments, it can improve both music and voice intelligibility by improving direct/ reflected sound quality
  • Standard white finish RAL 9016
  • EN 54-24 EC Certificate of Conformity


Datasheet Manual Drawings EASE Data
