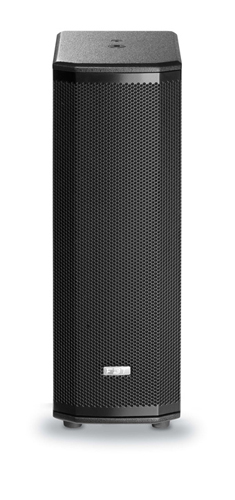

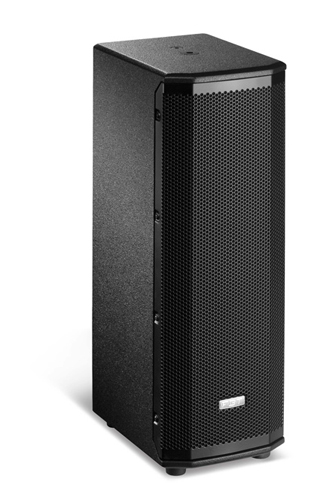

VENTIS 206A

VENTIS 206A

Category:

Description

PROCESSED ACTIVE SPEAKER 700W + 200W RMS – 131DB SPL

  • 2-way, bi-amplified, bass reflex design
  • Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
  • Digital Signal Processor with graphic display
  • 15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
  • High efficiency switch mode power supply
  • Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
  • 2x165mm (6.5”) LF woofer with 38mm (1.5”) voice coil, custom made for FBT
  • 25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil
  • Frequency response from 70Hz to 20 kHz
  • 70°H x 50°V Constant Directivity Rotatable Horn
  • 6 x M10 suspension points, wall bracket mount thread, 35mm (1 3/8”) top-hat
  • One integrated handle
  • 12mm (0.47”) birch plywood scratch resistant enclosure and internal bracing

Resources

Datasheet Manual Drawings EASE Data
