Description

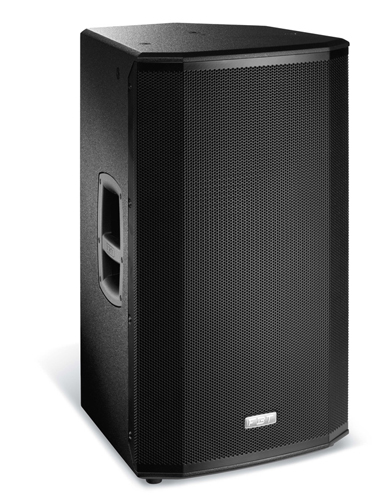

PROCESSED ACTIVE SPEAKER 700W + 200W RMS – 131DB SPL

• 2-way, bi-amplified, bass reflex design
• Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
• Digital Signal Processor with graphic display
• 15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
• High efficiency switch mode power supply

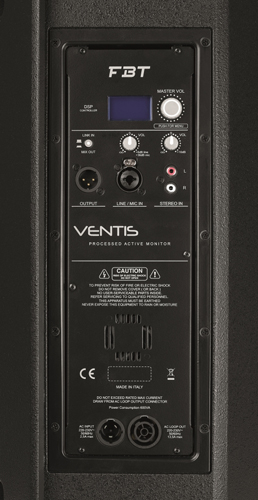

• Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
• 250mm (10”) LF woofer with 50mm (2”) voice coil, custom made for FBT
• 25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil
• Frequency response from 58Hz to 20 kHz
• 80°H x 50°V Constant Directivity Rotatable Horn
• 6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8”) top-hat
• Speaker stand socket, one aluminium handle
• 45° monitor taper
