Description

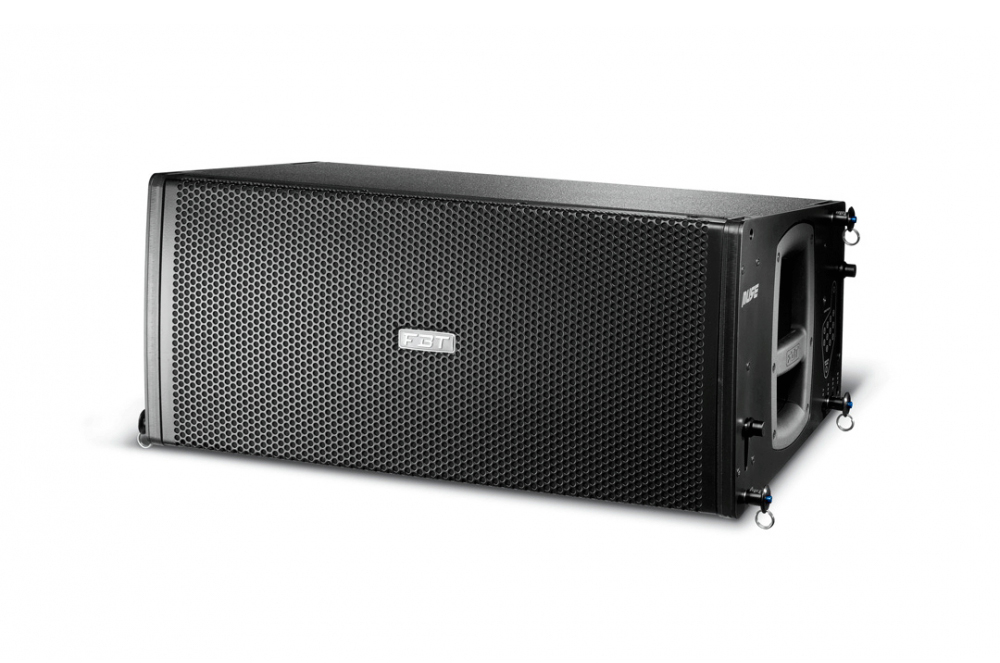

600W+300W RMS – 135DB TOTAL SPL PRECISION COVERAGE VERTICAL ACTIVE LINE ARRAY

• Volume control (USA Exclusive). Adds individual box shading in array.
• 2-way, compact bass-reflex line array system
• Two 250mm (10”) woofers with 64mm (2.5”) voice coils
• Two custom B&C HF compression drivers with 25mm (1”) throats
• Precision waveguide delivering 90° of horizontal dispersion up to 18Khz
• Frequency response from 55Hz to 20KHz
• Onboard Class-D bi-amp system delivering 600Wrms and 300Wrms for LF and HF with switch-mode power supplies
• Onboard DSP processor with 8 EQ presets, adjustable HF level of +/- 5db for accurate amplitude shading
• Control panel with XLR input and link, preset control, HF level control, HP-filter and ground lift
• Strong birch plywood cabinet with integrated aluminum handles, hardware and fly-ware offering adjustable angling ranging from 0° to 10° in 2° increments

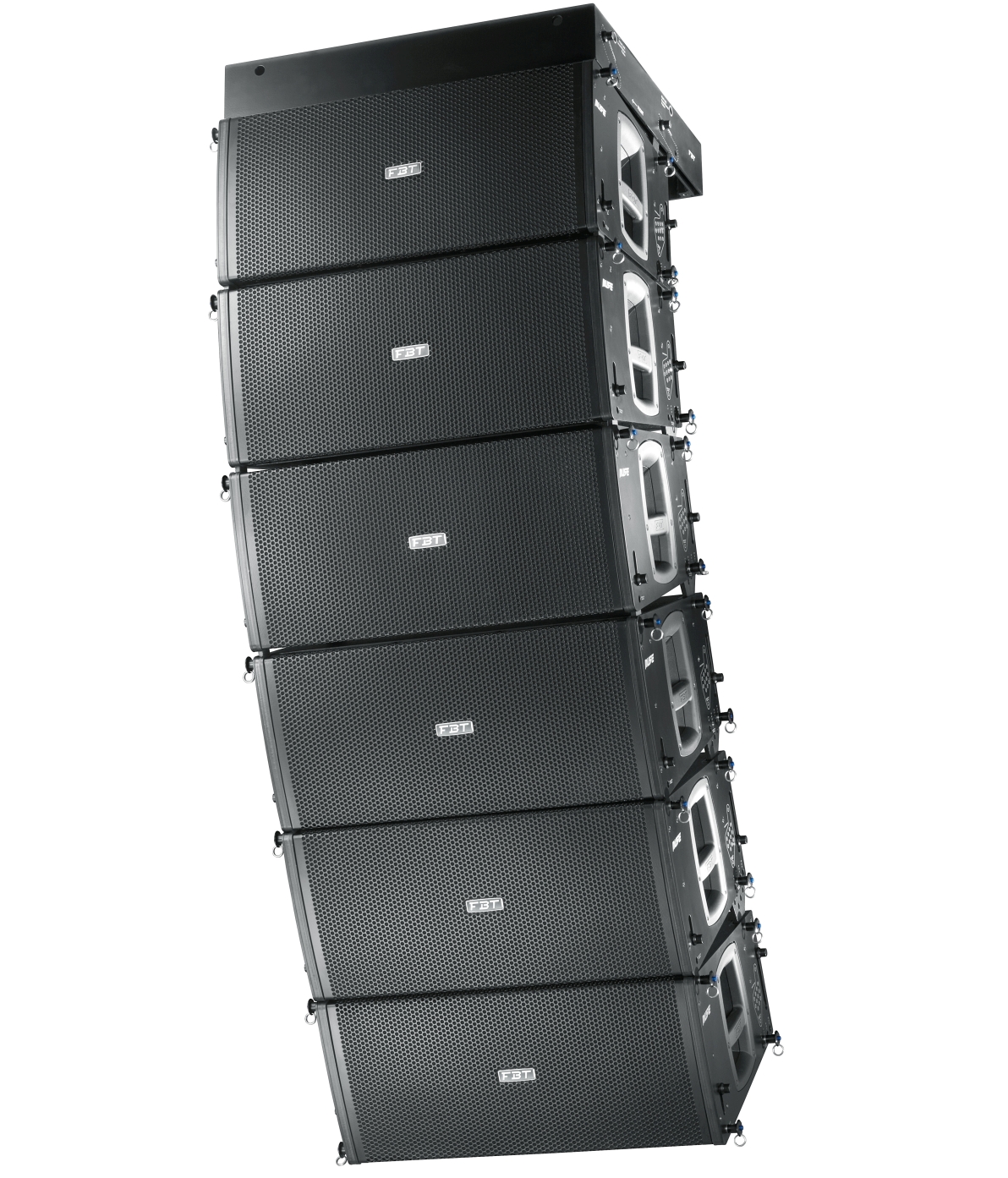

• Wide range of accessories to offer ultimate flexibility no matter whether your MUSE line array system is suspended or ground-stacked, plus a specially designed cover to guard against bad weather
