Description

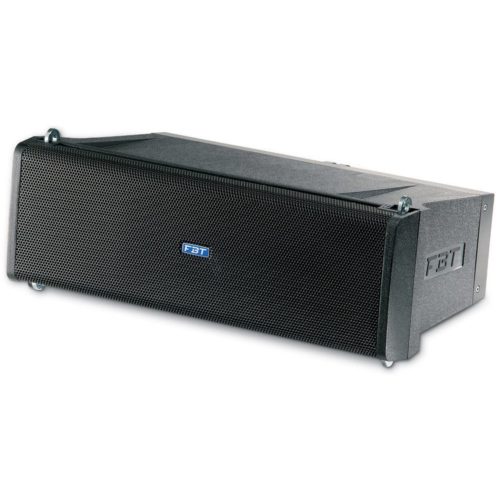

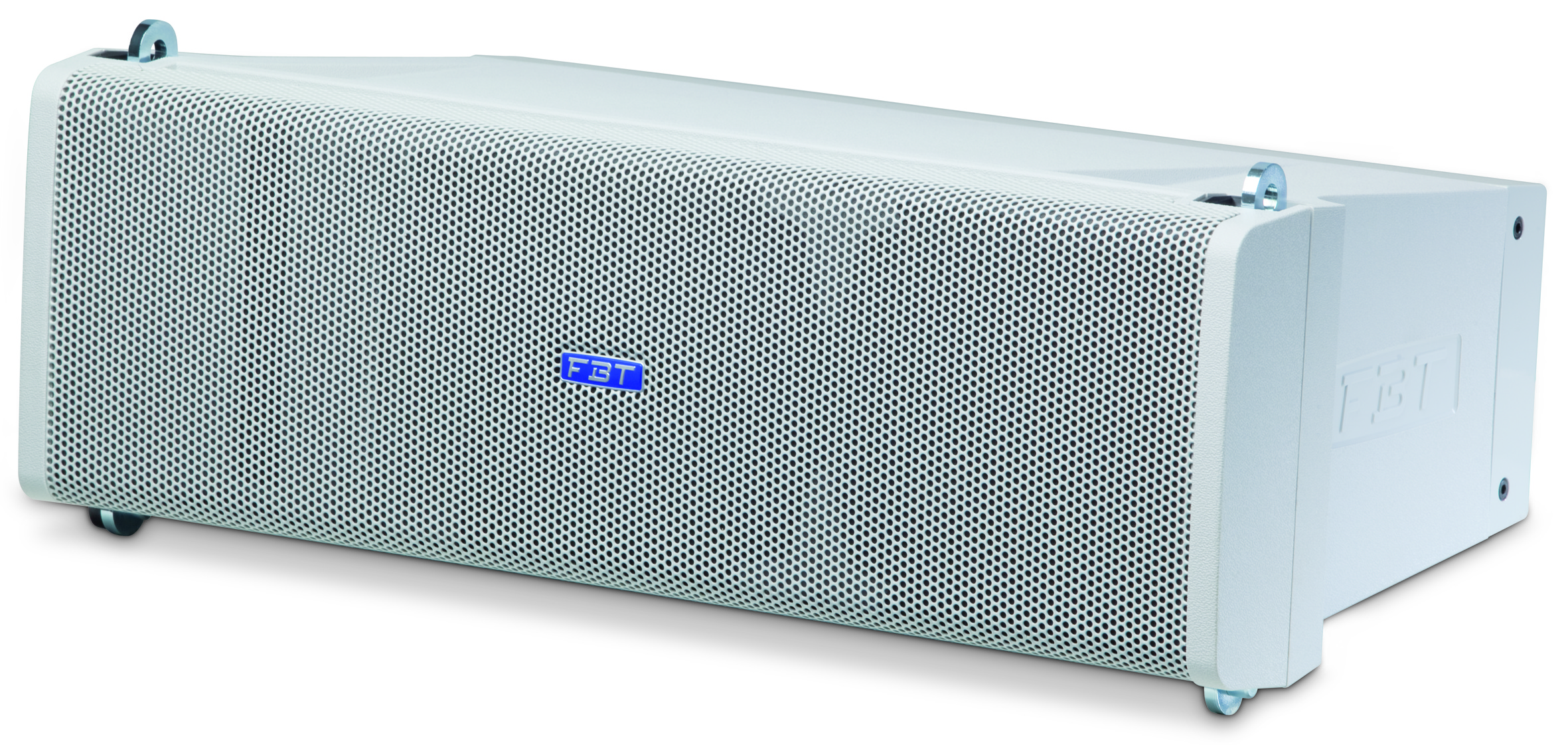

500W + 150W-16ohm 129dB SPL LF-133dB SPL HF Precision coverage vertical array

• Compact 2-way, bass-reflex design
• Passive version, recommended amplifier of 500Wrms / 16ohm LF and 150 Wrms / 16ohm HF
• Internal HF protection
• Neutrik Speakon NL- 4MDV connectors IN & LINK OUT
• External digital processor requie
• 2 x 6.5’’ (165 mm) B&C neodymium woofers with 1.7’’ (44 mm) coil
• 1.4’’ (36 mm) exit B&C neodymium driver with 2.5’’ (64 mm) coil
• Frequency response from 75Hz to 20KHz
• 100° horizontal waveguide with very low distortion and near flat wavefront up to 18Khz
• High impact polypropylene  gas-injected enclosure withintegrated rigging hardwareadjustable with 0° to 10°angle between cabinets at2° step
• Ideal for small to medium sized application, from single pole mounted loudspeakers with 100°H x 10°V coverage
• to multiple cabinet full sized line array, the MITUS 206L maybe used also in outdoor applications where the system is not directly exposed to the elements
• Wide range of hardware accessories for flying and ground stacked configurations
• Very lightweight, only 13.5Kg
