Description

1200W – 139dB SPL Processed Active Subwoofer

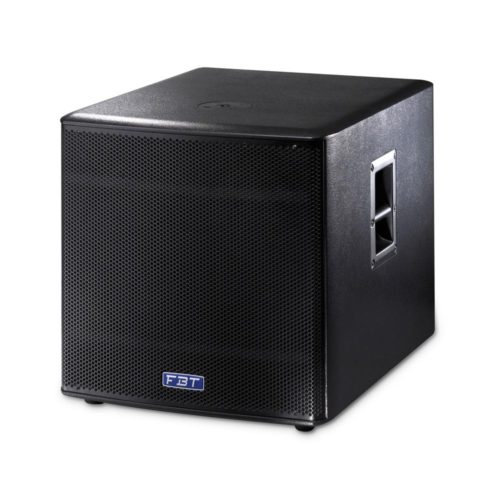

• Compact vented band pass subwoofer design enclosure
• 460 mm (18’’) custom B&C neodymium magnet high excursion woofer with 75 mm (3’’) voice coil
• Frequency response from 36Hz to 100Hz
• Class D amplifier delivering 1200WRMS
• Switch mode power supply
• DSP with 8 presets, cardioids and infra configurations, delay

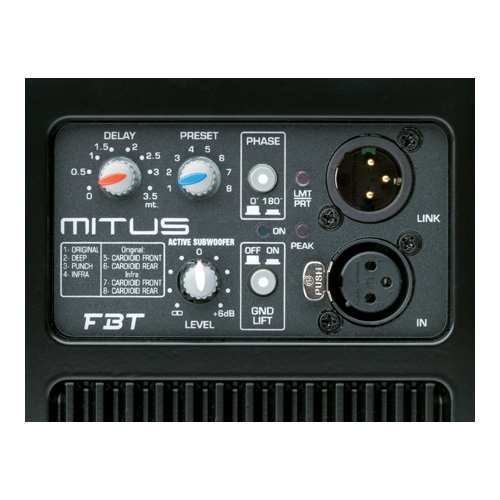

• Control panel with XLR input and link, volume, presets, delay, phase 0°-180°, groundlift
• 18 mm (3/4’’) birch plywood enclosure, scratch resistant black paint
• Eight M10 fly points, M20 top mount stand socket and two FBT design aluminum handles
• Optional 4 swivel-mount casters 80 mm (3.15’’) on request
• Perfect low-frequency extension for the MITUS range and an ideal companion for the MITUS 206LA line array for ground stack applications with optional MTB206 metal base
