ARCHON

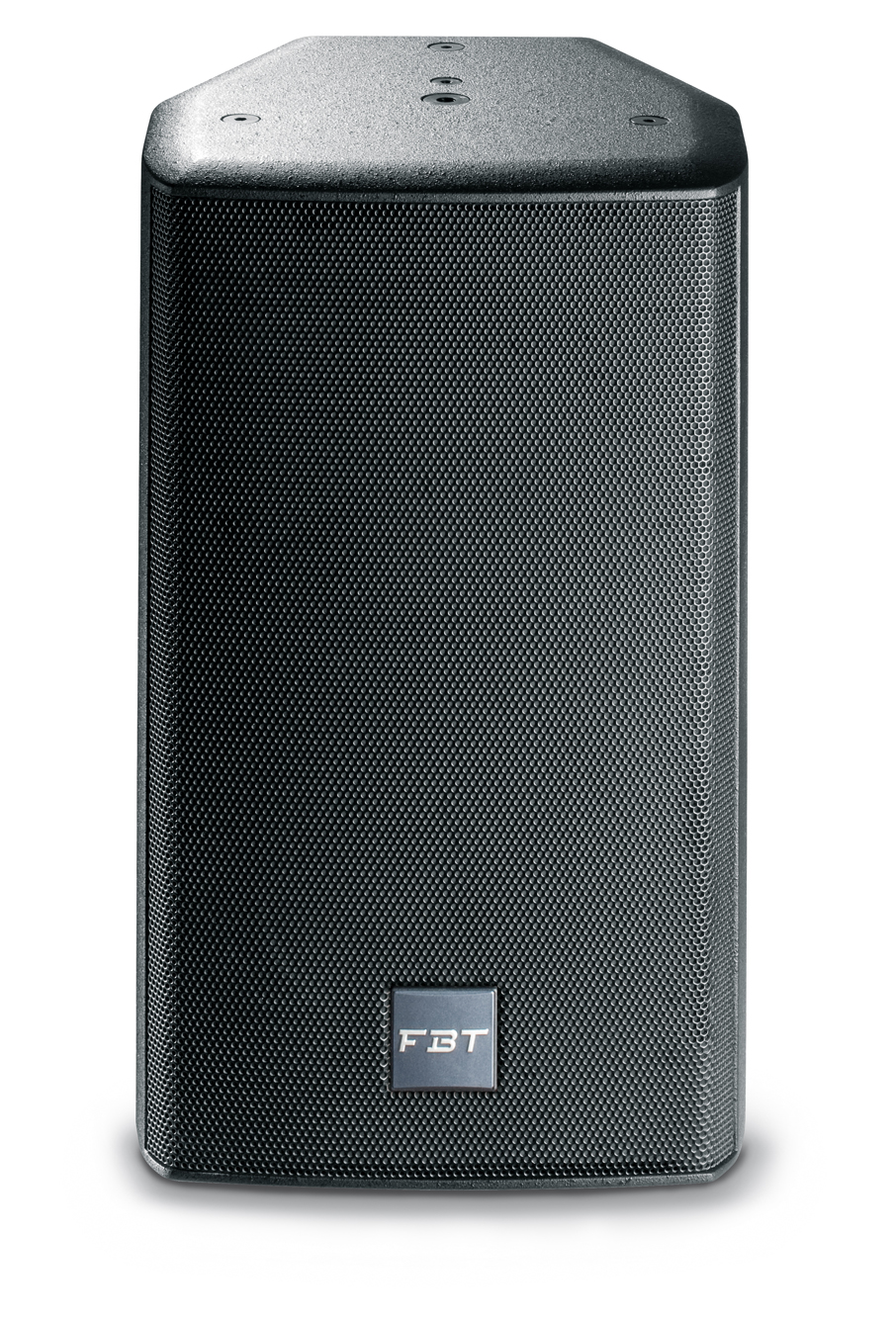

ARCHON 112

PASSIVE SOUND REINFORCEMENT 1000 W / 8 OHM - 133DB SPL

mount

pole mounted

flyinghardware

flying hardware

Click on the image to zoom
Technical Specifications
Code: 36330
Configuration: 2 way
Recommended amplifier: 1000 W RMS
Long Term power: 500 W
Short term power: 2000 W
Nominal impedance: 8 ohm
Frequency response: 50Hz - 18KHz -6dB
Low Frequency woofer: 12 x 3 coil inch
High frequency driver: 1.4 - 2.5 coil inch
Sensitivity (@1W/1m): 99 dB
Maximum SPL cont/peak: 129/133 dB
Dispersion: 70°x50° HxV
Crossover Frequency: 1.6 passive or active Bi-Amp KHz
Recommended HP filter: 40hz - 24dboct
Recommended external filter: Digital management with presents
Input connector: 2 x speakon NL4 in & thru 4 x Euroblock
Net Dimension (WxHxD): 365x660x380 - 14.37x25.98x14.96 mm/inch
Net Weight: 22/48.5 kg/lb
DOWNLOAD
  • Datasheet ARCHON 112
  • PDF Drawings Archon 112
  • GLL FOR EASE AND FOCUS3
  • DWG Drawings ARCHON 112
  • User Manual ARCHON 112
  • GLL Release Note
Accessories
AC-U112V
AC-U112H
