J Series

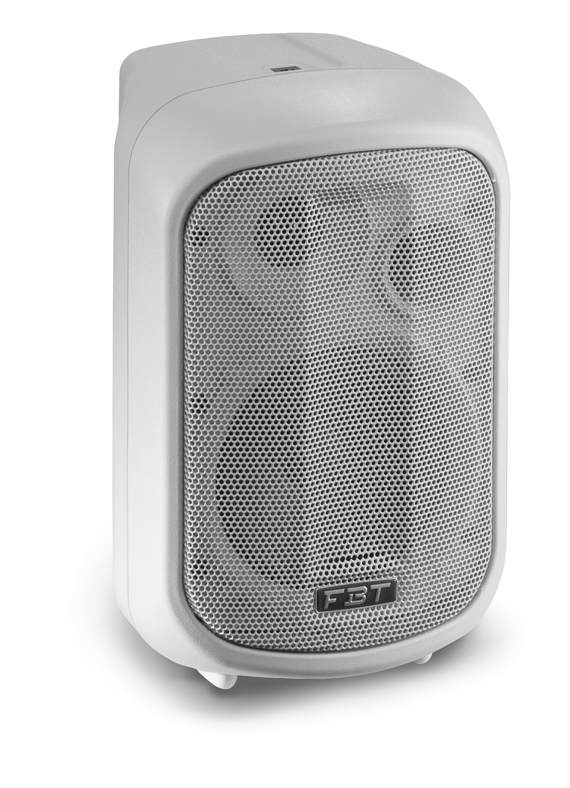

J 5

SOUND REINFORCEMENT MONITOR 80W – 117DB SPL

mount

pole mounted

hardware for permanent installations

flyinghardware

flying hardware

light

lightweight

Click on the image to zoom
Technical Specifications
Code: 37830 / 37907 White
Configuration: 2 way
Recommended amplifier: 80 W RMS
Long Term power: 40 W
Short term power: 160 W
Nominal impedance: 16 ohm
Frequency response: 90Hz - 20KHz -6dB
Low Frequency woofer: 5 - 1 coil inch
High frequency driver: 1 dome - 0.75 coil inch
Sensitivity (@1W/1m): 94 dB
Maximum SPL cont/peak: 114/117 dB
Dispersion: 90°x90° HxV
Crossover Frequency: 3.5 KHz
Recommended HP filter: 80hz - 24dboct
Recommended external filter:
Input connector: 1 x jack terminal strip
Net Dimension (WxHxD): 170x275x180 - 6.69x10.82x7.08 mm/inch
Net Weight: 3.4 / 7.49 kg/lb
DOWNLOAD
  • GLL Library for EASE J 5
  • Datasheet J 5
  • DWG Drawings J 5
  • PDF Drawings J 5
  • User Manual J 5
  • GLL Release Note
